Stainless Steel Hardware With Shoebox System

stainless steel hardware with shoesbox system

  • Descripton

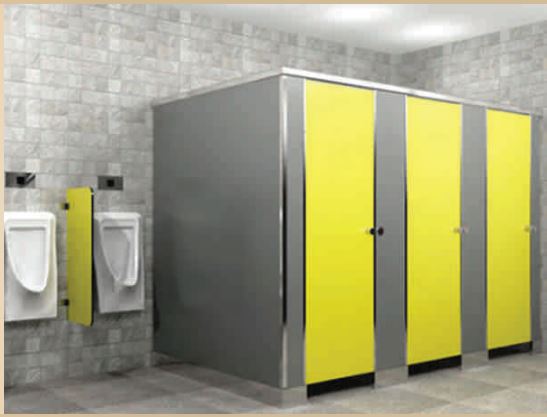

MEGHA SYSTEMS'S another style-Invincible, developed from 12mm multi-layer high pressure Compact Laminate to give unparalleled performance and a stainless steel top rail for providing extra strength and stability. This 12mm shoe box up model replaces the standard adjustable foot with a cleaner stainless steel box, located at the bottom to provide a clean line design. Rest of the hardwares like hinges, locks, door knobs and coat hooks are also produced in stainless steel. Thus, 12mm shoe box up model is the perfect selection for your restroom space designing.

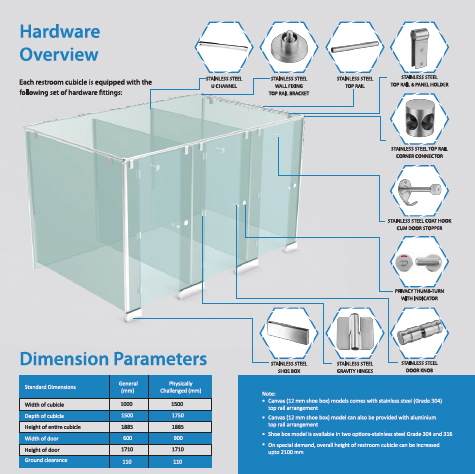

Hardware Assembly Details

All panels are supported by L-bracket with floor anchor bolt. The L-bracket is concealed with stainless steel flat shoe box upto 100 mm height. The stainless steel shoe box is available in SS Grade 304 and 316 options. The divider panels are fixed onto the wall with stainless steel (Grade 304) U-channel section and SS Grade 304 screw inserts. Further all panels are fixed with a stainless steel (Grade 304) top rail at the top and doors are incorporated with the noise absorbing tape to reduce the noise effect..

Note:

Canvas (12 mm shoe box) models comes with stainless steel (Grade 304) top rail arrangement Canvas (12 mm shoe box) model can also be provided with aluminium top rail arrangement. Shoe box model is available in two options-stainless steel Grade 304 and 316. On special demand, overall height of restroom cubicle can be increased upto 2100 mm.
